Transfer Module

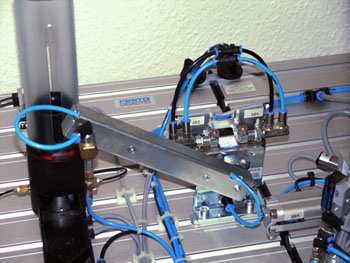

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The Transfer Module is a pneumatic handling device. The work pieces are picked by a vacuum suction cap and can be transferred in a range of 0º to 180º by a swivel drive. End position sensing is effected by means of sensors.

Transfer Module	Address	Function
Outputs	E0.2	swivel drive at magazine
	E0.3	swivel drive at testing station
	E0.5	work pieces sucked in
Inputs	A0.1	drive to pos. magazine
	A0.2	drive to pos. testing station
	A0.3	vacuum off
	A0.4	vacuum on

Interface description with FBDK
