Drilling Module

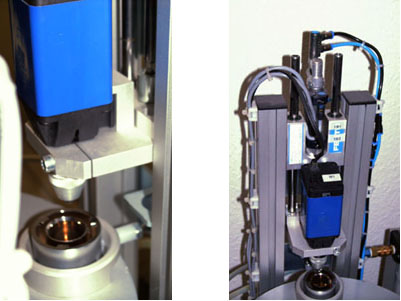

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The purpose of the Drilling Module is to drill a hole in the middle of a work piece. A double acting clamping cylinder is used to fix the work piece. The drilling unit is powered by a 24 V DC engine and as far as speed is considered it cannot be regulated. The drilling unit is moved pneumatically with the help of guiding elements. End position cushioning is effected by inductive proximity sensors.

Drilling Module	Address	Function
Outputs	E0.2	bracked in
	E0.3	bracked out
	E0.4	driller in
	E0.5	driller out
Inputs	A0.1	drill
	A0.3	driller down
	A0.4	driller up
	A0.5	brack in

Interface description with FBDK
