Slide Module

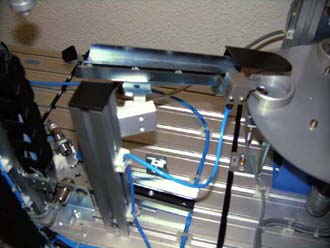

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The Slide Module is used for transporting work pieces to the next station. The angle of inclination is infinitely variable. A pneumatic stopper is mounted at the upper slide. By means of this stopper the work piece is stopped before it is transferred to the subsequent station.

Slide Module	Address	Function
Input	A0.4	extend_stopper

Interface description with FBDK
