Rotary Indexing Table Module

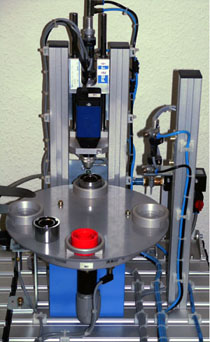

Distribution Station Feed Magazine Module Transfer Module Testing Station Detection Module Lifting Module Measuring Module Slide Module Processing Station Rotary Indexing Table Module Drilling Module Drilled Hole Checking Module back to index		The Rotary Indexing Table Module transfers the work piece between the modules. It can absorb 4 pieces. In position 1 the work piece is committed by the Slide Module belonging to the Testing Station. Position 2 is located at Drilling Module and the Drilled Hole Checking Module is to be found on position 3. In position 4 the work piece is transferred to the subsequent module of the following station. The rotary indexing table is driven via a DC gear motor. The rotating plate positions are set on the rotary module by an adequate number of sensing elements which are detected via an inductive sensor. A hole has been drilled in the middle of each work piece in order that the availability of the work piece might be detected by an optical proximity sensor.

Rotary Indexing Table Module	Address	Function
Outputs	E0.0	work piece present
	E0.1	table positioned
Input	A0.2	table rotate

Interface description with FBDK
